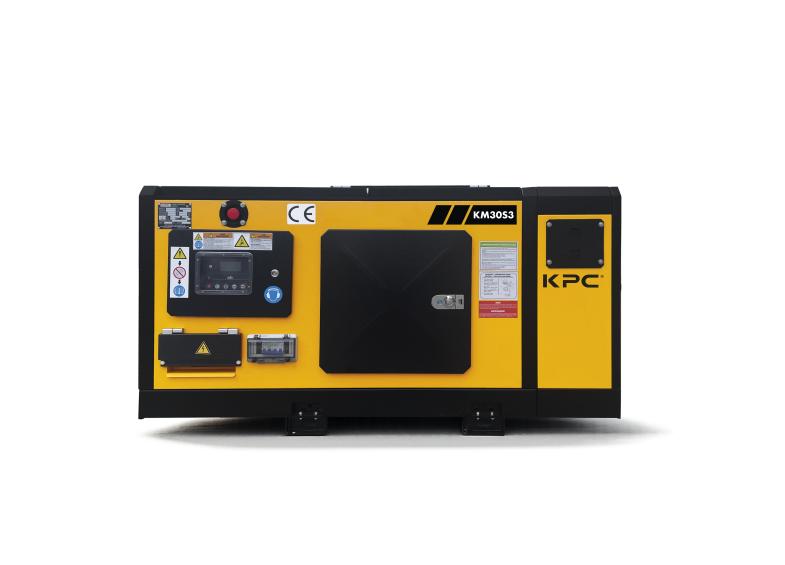

KM30S3
- The KM30S3 three-phase generator is a compact, powerful, and efficient solution designed to ensure reliable power supply in industrial and professional environments. Equipped with a high-performance diesel engine and a water cooling system, it offers stable operation and optimized consumption.
Description
The KM30S3 three-phase generator stands out for its excellent combination of power, efficiency, and robustness, making it an ideal choice for industrial, commercial applications, or as an energy backup system. It incorporates a 4-cylinder diesel engine with a water cooling system and advanced technology, ensuring reliable and continuous performance even under demanding working conditions.
This model offers a power output of up to 33 kVA in emergency mode (ESP) and 30 kVA in continuous operation (PRP), with an output voltage of 400/230 V and a frequency of 50 Hz, perfectly adapting to three-phase installations. Additionally, it features optimized fuel consumption based on load level, which enhances operational efficiency and reduces costs. The unit is equipped with a brushless, self-excited alternator with precise voltage regulation, ensuring a stable and safe electrical output. Its electronic speed regulation system improves performance control, while the DSE6120 panel facilitates generator monitoring and management.
In terms of design, it features compact dimensions (1800 x 740 x 825 mm) and a reduced noise level of up to 75 dB, making it suitable for various work environments. Weighing 590 kg, it offers a robust and durable structure while maintaining relatively easy installation.
Technical Specifications
GENERAL DATA
- PHASE:
- Three-phase
- FREQUENCY:
- 50 Hz
- COOLING:
- Water-cooled
- ENGINE TYPE:
- Diesel, naturally aspirated
- FUEL TANK (GAL):
- 11.89 gal
- PANEL:
- DSE6120
ENGINE
- MODEL:
- 4WD92-39D-HMS20W
- TYPE:
- Diesel, 4 cylinders, water-cooled, turbocharged
- DISPLACEMENT:
- 2.54 L
- BORE X STROKE:
- 90 mm x 100 mm
- COMPRESSION RATIO:
- 17:1
- RATED SPEED:
- 1500 rpm
- NET POWER (WITHOUT FAN):
- 29 kW
- FUEL CONSUMPTION:
- 100% load: 2.02 gal/h / 75% load: 1.51 gal/h / 50% load: 1.07 gal/h
- OIL CAPACITY:
- 2.11 gal
- COOLANT CAPACITY:
- 1.59 gal
- EXHAUST GAS TEMPERATURE:
- 480 °C
- MAXIMUM INTAKE PRESSURE:
- 6.3 kPa
- MAXIMUM BACK PRESSURE:
- 6.7 kPa
- AIR CONSUMPTION:
- 81.2 ft³/min
- EXHAUST GAS FLOW:
- 204.8 ft³/min
- SPEED REGULATOR:
- Electronic
- STARTING SYSTEM:
- 12 V
ALTERNATOR
- MODEL:
- LK184G
- CONNECTION TYPE:
- 3 phases, 4 poles, Y connection
- EXCITATION:
- Brushless, self-excited
- POWER FACTOR:
- 0.8
- INSULATION CLASS:
- H
- PROTECTION GRADE:
- IP23
- VOLTAGE REGULATION:
- ± (0.25% ~ 1%)
- FREQUENCY:
- 50 Hz
- MAXIMUM SPEED (OVERSPEED):
- 2250 rpm
- MAXIMUM OPERATING ALTITUDE:
- ≤ 3280 ft
POWER
- PRIME POWER (PRP):
- 24 kW / 30 kVA
- EMERGENCY POWER (ESP):
- 26 kW / 33 kVA
DIMENSIONS AND WEIGHT
- LENGTH X WIDTH X HEIGHT:
- 70.87 x 29.13 x 32.48 in
- SOUND LEVEL:
- dB ≤ 75
- WEIGHT:
- 1424 lbs
